Hand assembled to faithfully re-create its Vintage fore-runner, the Heritage G12H (75) 15 ohm guitar speaker delivers 30 watts power handling and 100 dB sensitivity.

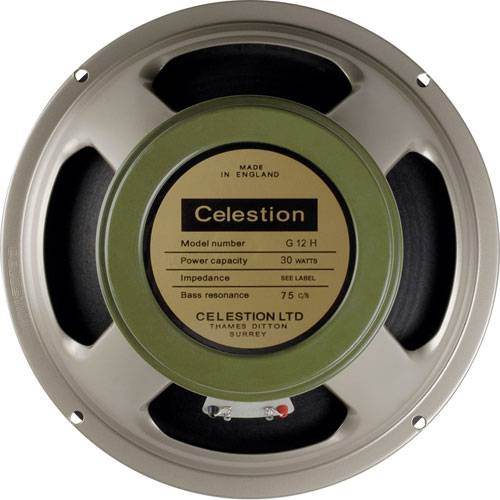

Celestion Heritage G12H 75 Hz 12" 15 Ohm Guitar Speaker
New for 2011, Celestion have re-introduced the Heritage Series G12H (75) featuring a 75 c/s 'lead' cone for an alternative tonal balance (compared with the G12H (55) version with 55 c/s base cone) that places a little less emphasis on bass frequencies. Heritage Seriest production pays strict attention to detail, right down to the voice coil former material, glue formulations and edge treatment. Choose this version if you prefer a tighter bottom end with a punchy upper mid-range and sparkling highs.
Overall Specifications: • Nominal diameter: 12" (305 mm) • Power rating: 30 watts • Nominal impedance: 15 ohm • Sensitivity: 100 dB • Chassis type: Pressed steel • Voice coil diameter: 1.75" (44.5 mm) • Voice coil material: Round copper • Magnet type: Ceramic • Frequency range: 75-5,000 Hz • Fs: 75 Hz • DC resistance, Re: 12.11 ohm.
Mounting Information: • Diameter: 12.2" (309 mm) • Overall depth: 5.3" (135 mm) • Magnet structure diameter: 6.6" (168 mm) • Cut-out diameter: 11.1" (283 mm) • Mounting slot dimensions: 0.31", (7.9 mm Ø) • Number of mounting slots: 4 • Mounting slot PCD: 11.7" (297 mm) • Weight: 10.4 lbs. (4.7 kg).
