Dayton Audio OmniMic V2 Precision Measurement System

Dayton Audio OmniMic V2 Precision Measurement System

Acoustic measurements just got easier!

Dayton Audio's OmniMic V2 was developed in collaboration with Liberty Instruments, inventors of the Praxis analysis tool. Powerful, versatile, yet easy to use, the OmniMic V2 will become an indispensible part of your audio toolboxwhether for testing individual speaker components or entire in-place audio systems of every description. The OmniMic V2 provides quick and accurate measurements that will reduce installation time, saving you both labor and money.

The OmniMic V2's test signals may be initiated from the host computer, or from any audio CD player. System includes calibrated USB microphone, rubberized mic clip, software and test signal discs, 6 ft. USB 2.0 cable, desktop tripod stand, and carrying case. Compatible with Windows XP, Vista, and Windows 7.

Measurements:

 SPL meter with A, B, C, or no weighting
 Spectrum analyzer, FFT, or RTA

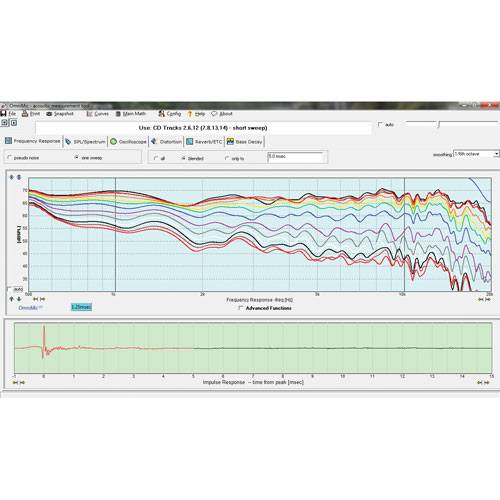

 Frequency response with phase and impulse response
 Oscilloscope function to view complex waveforms
 Harmonic distortion: 2nd, 3rd, 4th, 5th harmonics plus THD
 RT60 reverberation: measures sound reflection
 Bass decay function identifies room modes and helps determine proper subwoofer placement

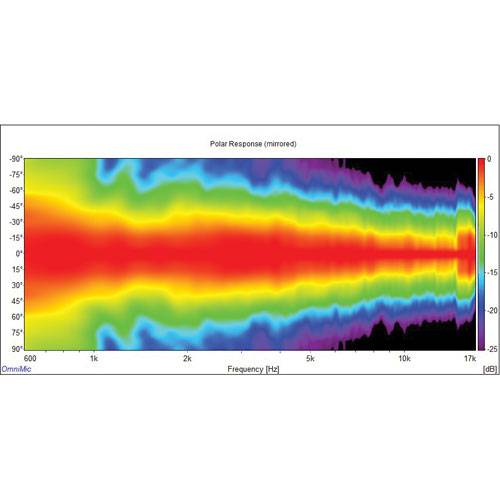

 Polar Plotting, in flat or 3D radar format
 Wavelet Spectrogram (color) to the Waterfall group
 Curve Math for live or added curves
 Auto-naming of repeated FRD measurements; updated
 Snapshots to PNG, BMP, JPG or WMF formats
 Measurement down to 5Hz
 Energy-Time Curves, with configurable band limiting
 Supports new file-based microphone calibration
 Expanded Help Files
 Printer selection

Calibrate Your OmniMic V2 Instantly

A unique serialized calibration .txt file will be available for your OmniMic V2. Once you receive your microphone, click Calibrate OmniMic V2 where you will be prompted to enter the serial number found on the base of your calibrated OmniMic V2. After entering the serial number, your unique calibration .txt file will be available for you to download.
